Product Details

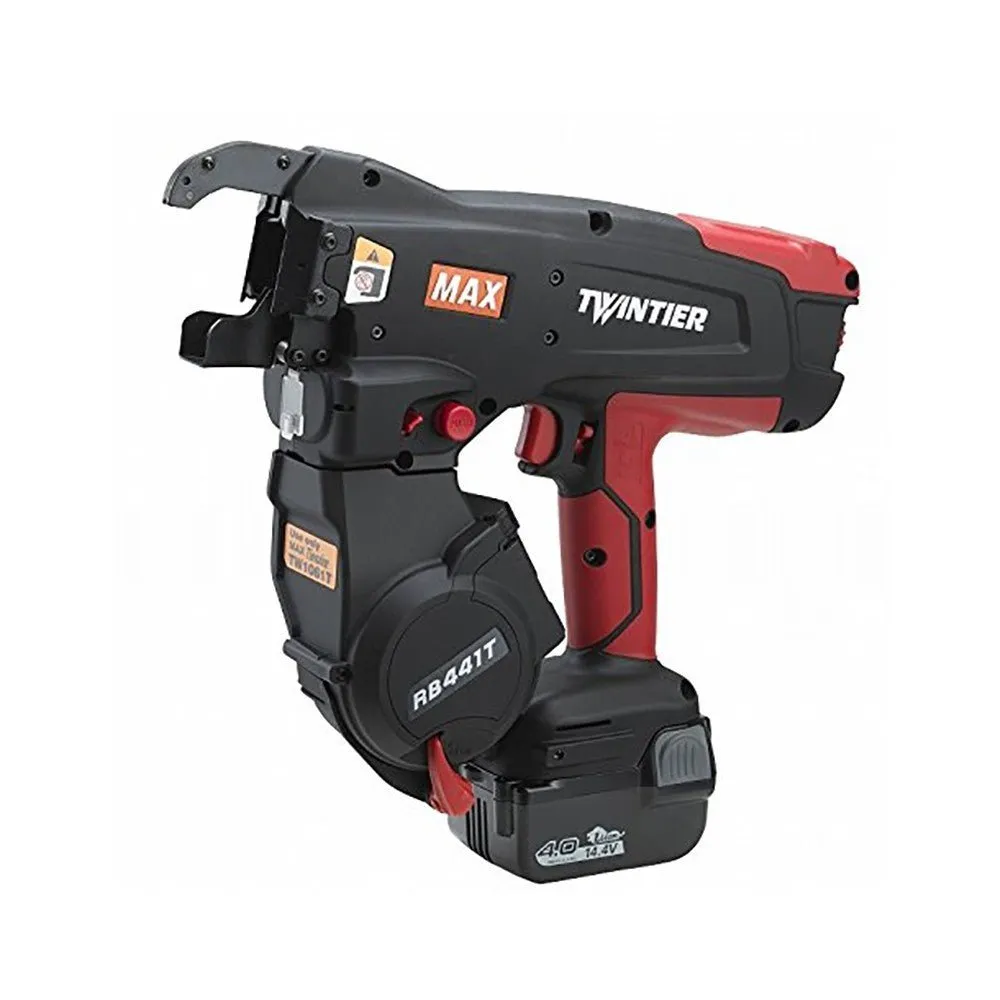

＋The RB441T "TwinTier" is a 6th generation MAX Re-Bar-Tier. The TwinTier features 3 new innovative mechanisms making it the most efficient rebar tying tool on the market.
Applications
- Precast Plants
- Foundations
- Road and Bridge
- Swimming Pools
- Retaining Walls
- Tilt-Up
- Electrical Conduit
FEATURES
- Double the Speed. The Dual Wire Feeding Mechanism increases productivity.
- Cost Savings. The Wire Pull Back Mechanism dispenses the precise amount of wire needed to form a tie, reducing wire usage. The TwinTier can tie 4000 ties per battery charge and up to 240 ties per coil of wire (on #4 x #4 rebar).

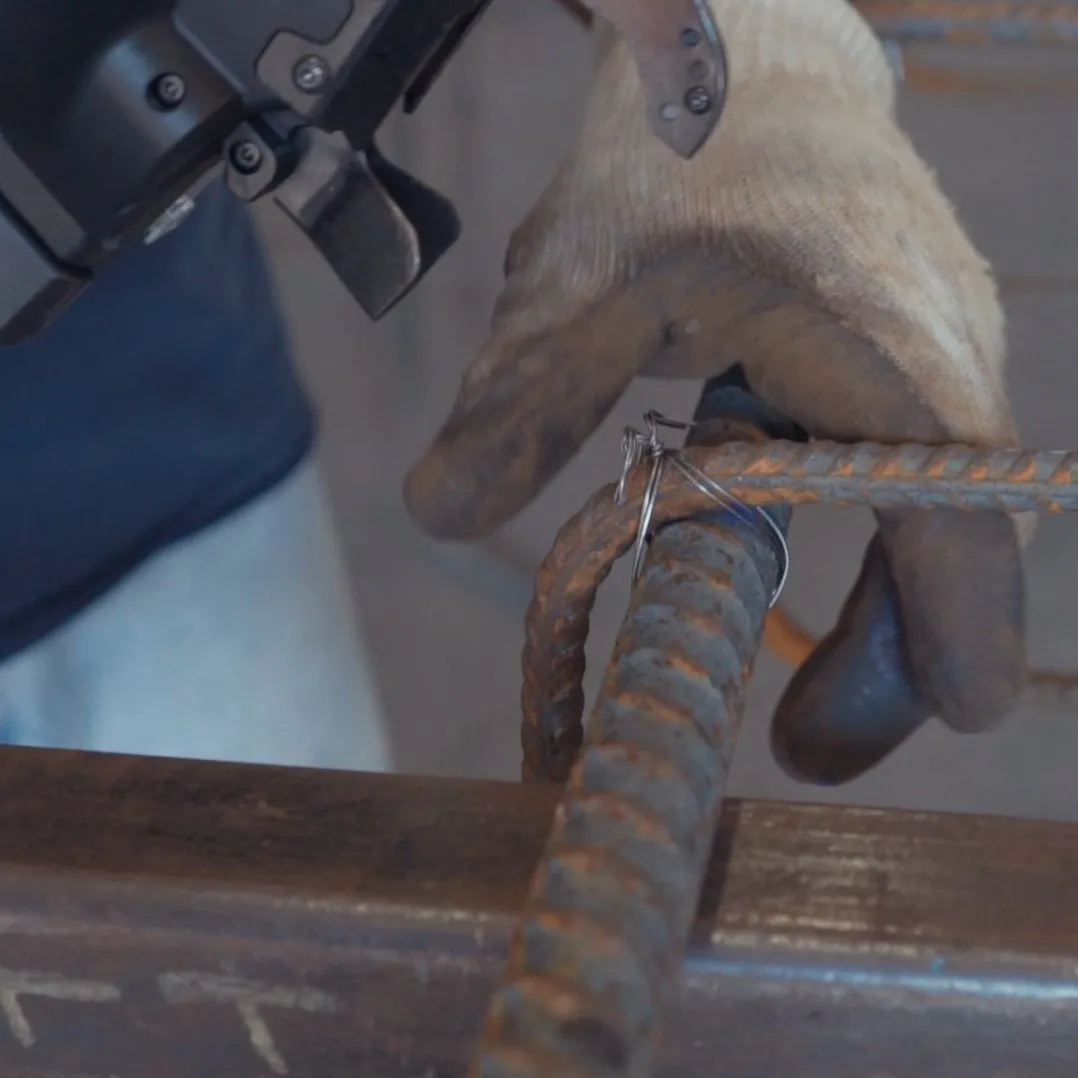

- Shorter Tie Height. The TwinTier’s Wire Bending Mechanism (Pat. Pending) produces a shorter tie height. Less concrete is needed to fully cover a wire tie.
- A large jaw enables the TwinTier to tie up to a #7 x #7 rebar.
- Slim arm fits easily at a 45⁰ angle for tight ties.
- An easy push gear release effortlessly opens gears to quickly feed wire when loading the tool.
SPECIFICATIONS
|
WEIGHT
|
5.6 lbs
|
|---|---|
|
DIMENSIONS
|
11 1/2"(H) x 4 3/4"(W) x 13"(L) |
|
MINIMUM TIES PER COIL
|
145
|
|
MAXIMUM TIES PER COIL
|
265
|
|
APPLICABLE WIRE PRODUCT/GA
|
TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga,
|
|
APPLICABLE REBAR SIZE
|
#3 x #3 - #7 x #7
|
|
TIES PER CHARGE
|
5000
|
|
TIE SPEED
|
Approx. 1/2 sec
|
|
BATTERY CHARGE TIME
|
Approx. 80 minutes full charge (approx. 60 minutes 80%)
|
|
BATTERY
|
JPL91450A
|
|
CHARGER
|
JC925A
|
